New throw bars

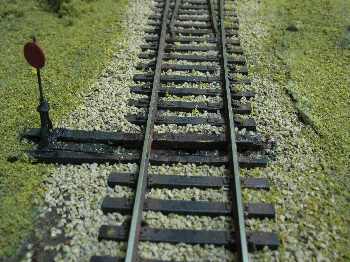

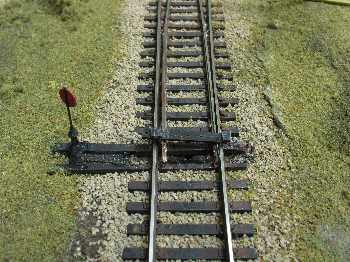

This looks the Central Valley turnout with PC boar throw bar:   But I changed it with a PROTO:87 throw bar.

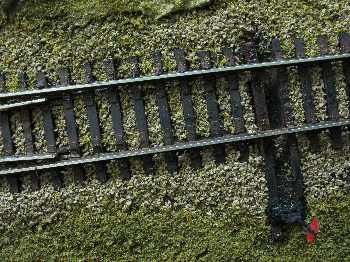

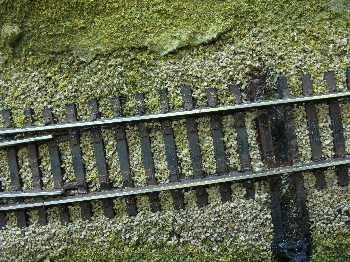

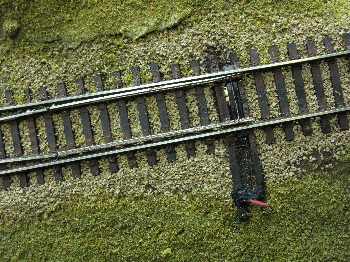

At first I drilled holes for the frets. I enlarged the holes at the top. With a usual piece of rail this is more easy. At first I removed the point rails.

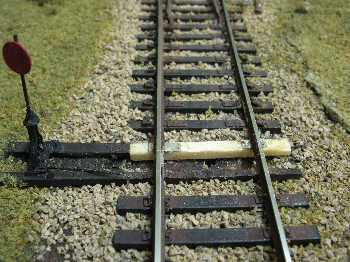

I inserted a wooden tie and glued on PROTO:87 tie plates.

Then I painted the wooden tie.

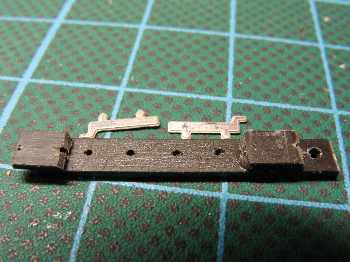

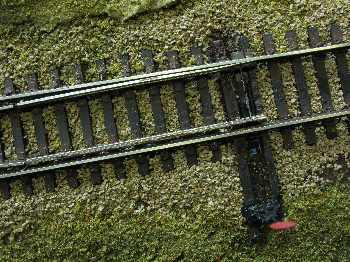

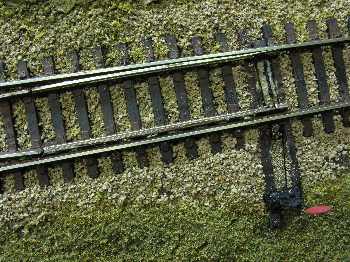

... and installed the point rails again. Then I prepared the PROTO:87 throw bar.

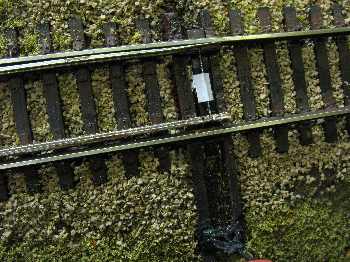

I modified it a little bit. This way you hold down the points.

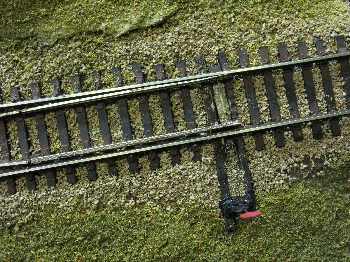

The next steps are like the PROTO:87 instruction. I've glued some ballast and painted the top of the frets black.

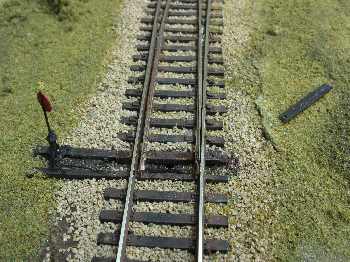

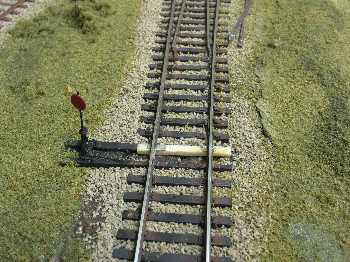

The finished turnout.
