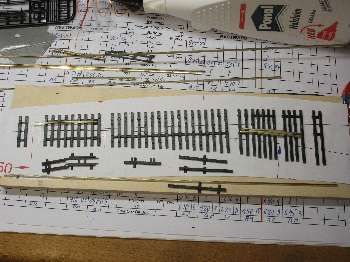

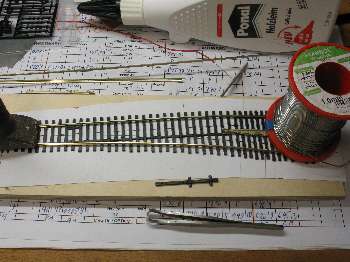

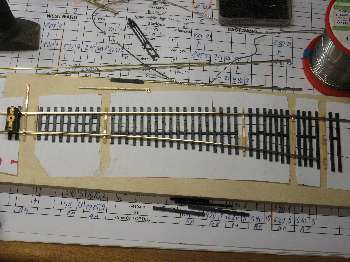

The first Cental Valley turnout for Diamond Valley is a # 8. This will be a curved one. I've made a template with centerline and glued with at few spots the tie base.

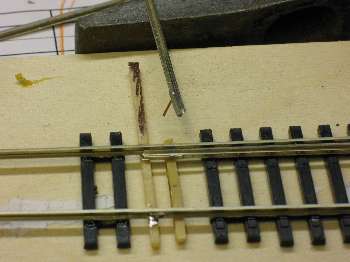

Then I removed a few ties and replaced them with PC board ties following an article from Joe Fugate.

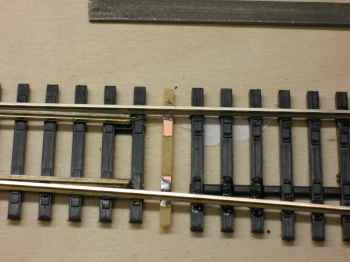

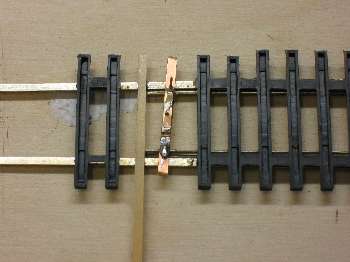

With throw bar I followed my old way, a tie as throw bar: I drilled a 0,5mm hole through the points and soldered a wire into it. This wire is soldered to the bottom of the PC board throw bar.
I connected the points with the stock rails with very thin wire left over from relays.

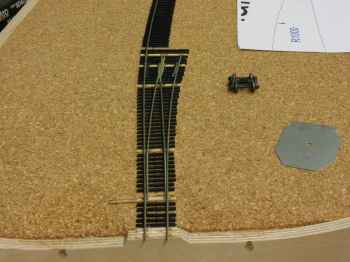

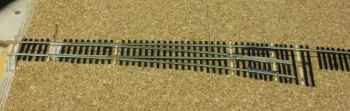

This is a first test with the module.

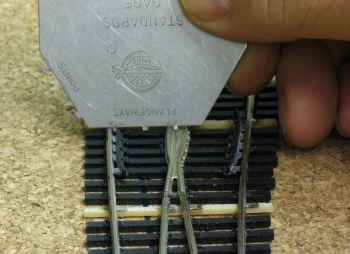

But there was a problem. The attached guard rails give not the correct clearance:

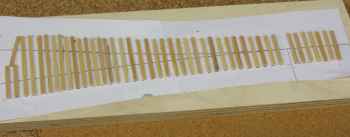

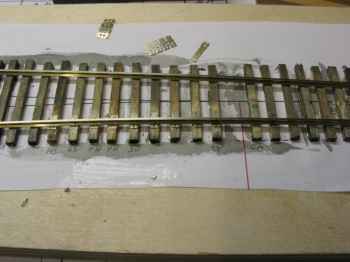

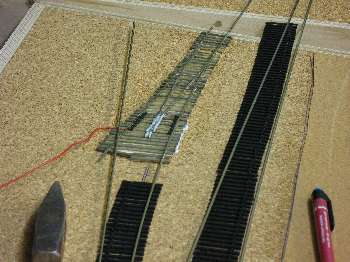

We will see and test this. I've started with the next turnout, a Proto87 ULTIMATE HO TURNOUT. At first I glued the ties:

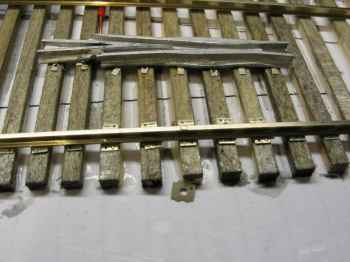

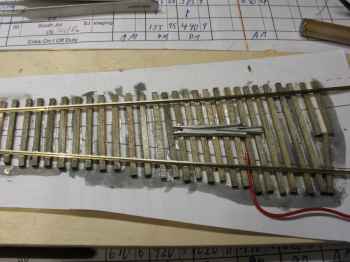

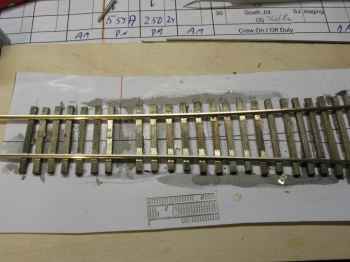

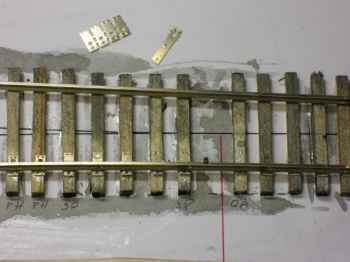

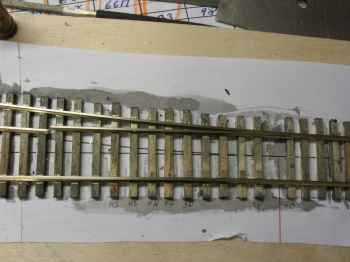

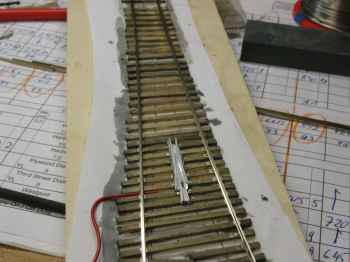

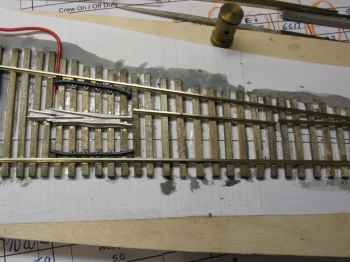

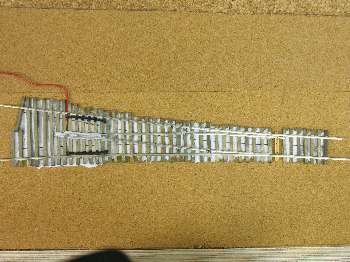

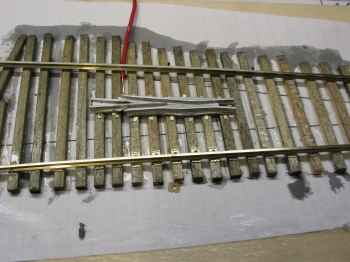

The work of the first evening: I glued with CA the tie plates and used the rail as template, guidance. The wire is soldered to the frog.

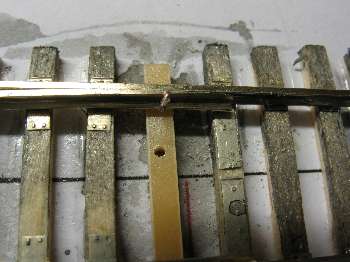

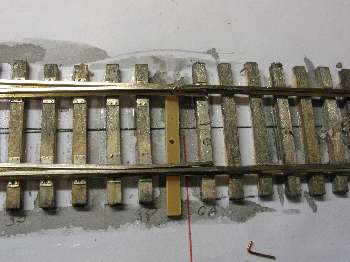

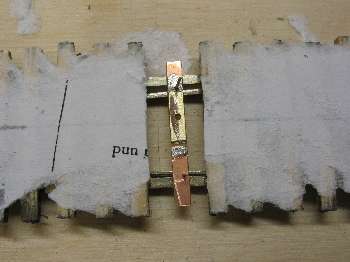

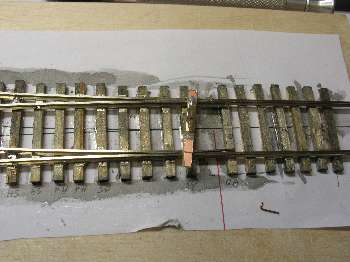

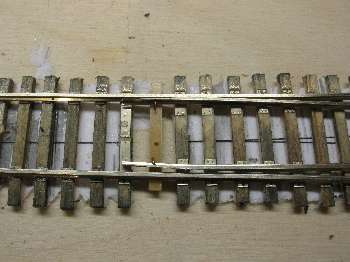

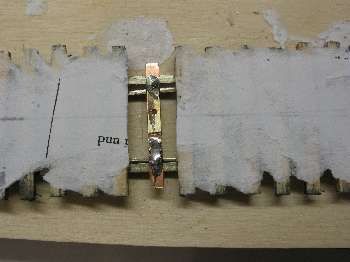

And the next day, making the throw bar. I use a PC board tie and drill 0.5mm holes through point rails and PC board tie. A 0.5mm wire is soldered to the throw bar. I reinforced the throw bar with a small piece of brass sheet.
Another helpful site: Dan's
