back to page 1 following part 3 or or page 4 (operating the yard)

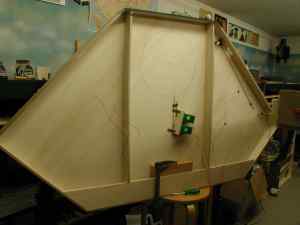

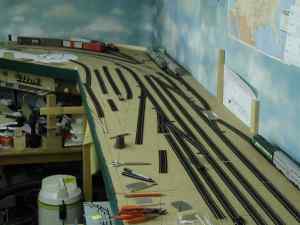

The plan:
The right - east - side

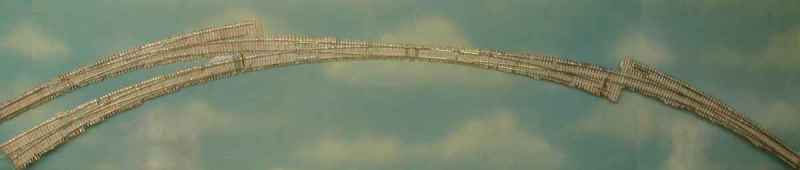

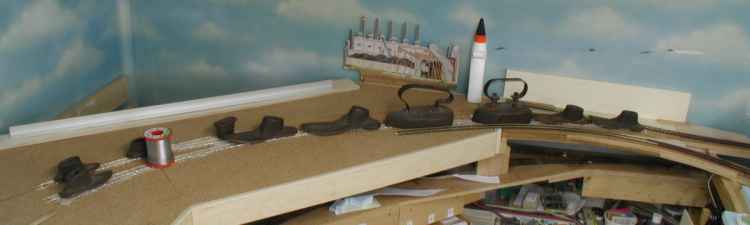

The throat is ready for installing:

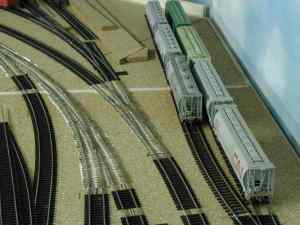

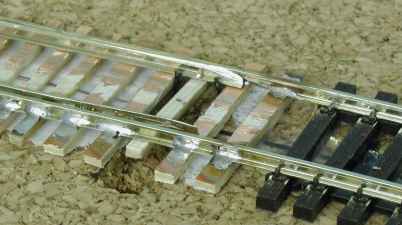

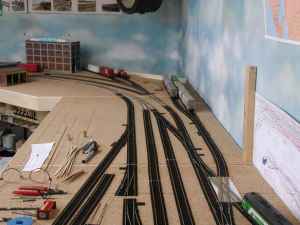

And some tracks for the first train! The turnout points are spiked. As with

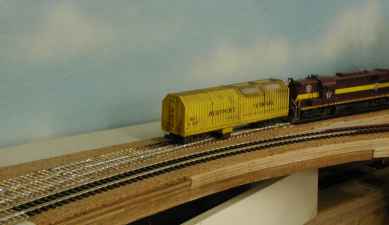

the prototype, when special trains run. First came the vacuum cleaner with
some test cars.

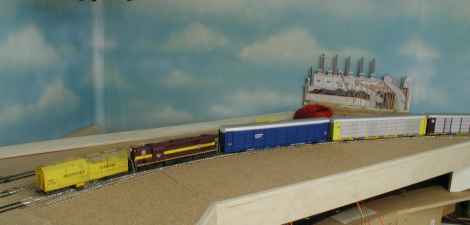

Then suddenly derailed a train traveling to the left. A quick review revealed
the reason. With a guard rails still lacked, so this train had problems.

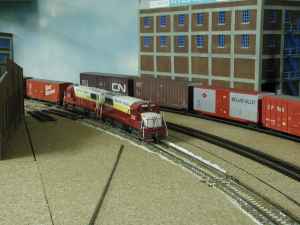

The next step was from the opposite direction, that is not a problem. And
then, the guard rails are soldered.

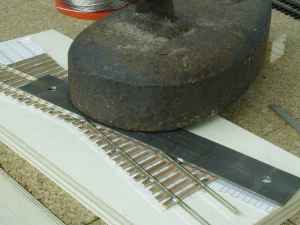

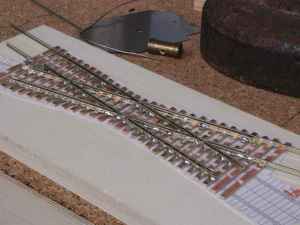

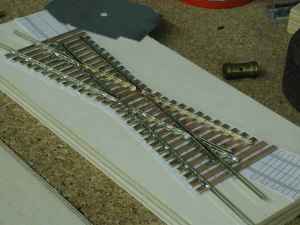

A crossing had to be build:

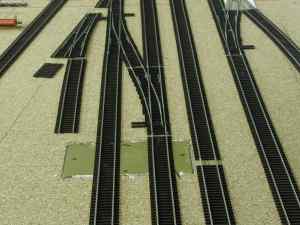

And so are some tracks! Now, again turnouts can be supplied.

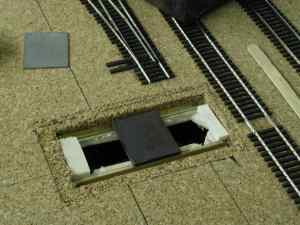

For two Arrival - Departure tracks, I have a moveable magnet installed.
Those two tracks have a connection, so that the train can be easily separated.

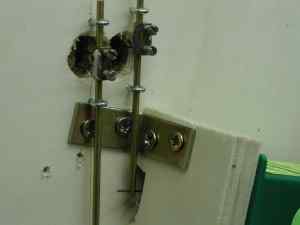

The magnet, as shown in the right picture to be seen, is moved with a rod.

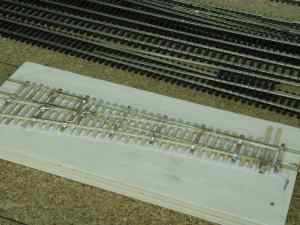

Similarly, I "had" to scratch build another turnout. This time
a "dummy" without function. The points are soldered on! I have
the template of Fast
Tracks used because the ties were already included. Also, I have wooden
sleepers and few PC-Board ties used.
With Peco turnouts I've made a sure electric contact as usual and you
see here.

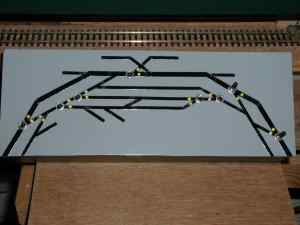

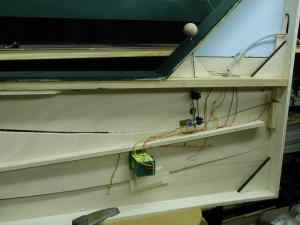

As of Sept. 10, 2006, Benjamin has started with the tower panel. (According
to the prototype are only those turnouts with remote control, the yard master
switches for trains, all other turnouts are manually thrown. manually thrown
turnouts in the use of trains are shown with LEDs in the panel!):

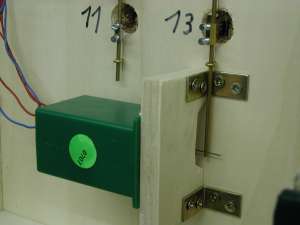

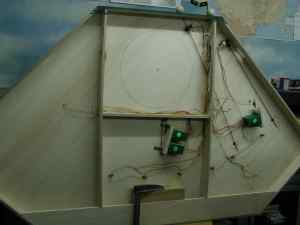

And now comes the operation of the turnuts and wiring. For the Tortoise
an idea was needed. The normal version requires installation of approximately
8 cm space. I had just 5.5 cm! The solution was the horizontal mounting.
After the wiring is the operational test. But "cold" has been
everything worked.
