Some pictures are linked to a larger view, click on them. with Details West and more pictures:
The "new" Peco code 83 #6 with Details West switch stand:
At first, the turnout got longer ties: |
This is a Peco code 75 turnout. |

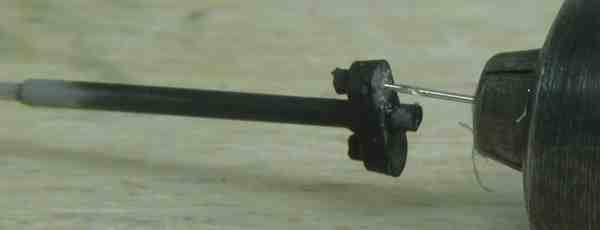

This picture shows how I drilled the hole into the plastic part from Central Valley (?) switch stand. I moved the Details West switch stands, too. Look at my album in Railimages or at my German site, the pictures will tell you.
And in motion at my video site.

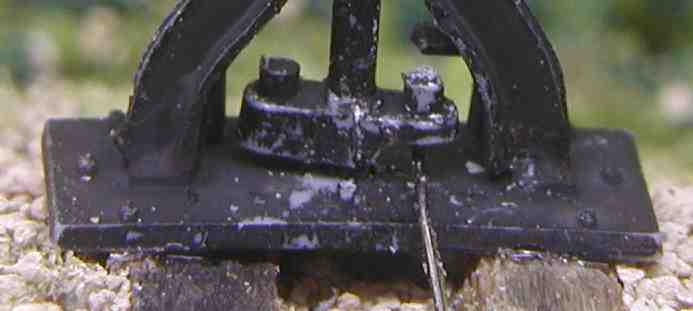

I sanded this part a little bit where I drilled the tiny hole. This way I got space for the wire.

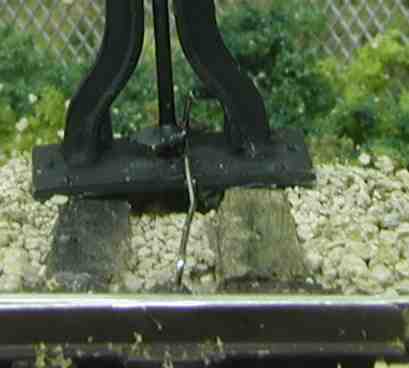

The first two switch stand were from CVt, I guess. I connected the throw bar with the switch stand linkage with a 0,3mm (0.012'') wire. At the second switch stand, the plastic rod was broken. I replaced it by a 0,7mm (0.03'') wire and a little piece of brass sheet. The other end from the tiny steel wire was at the throw bar. I drilled a 0.012'' hole and glued there the wire. |

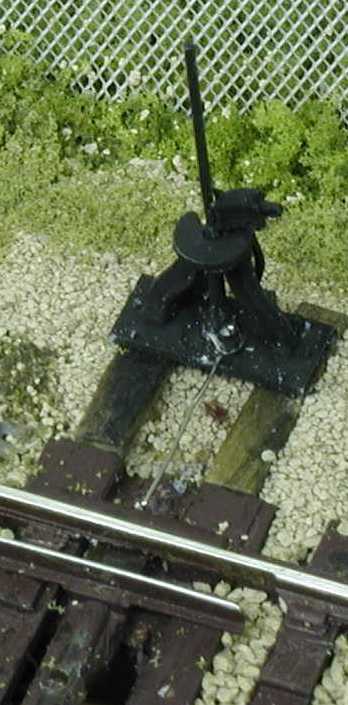

Still without target. The switch stand were glued with ACC to the ties.

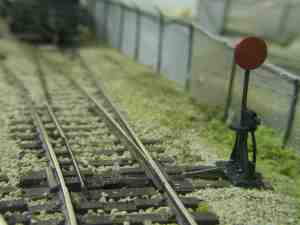

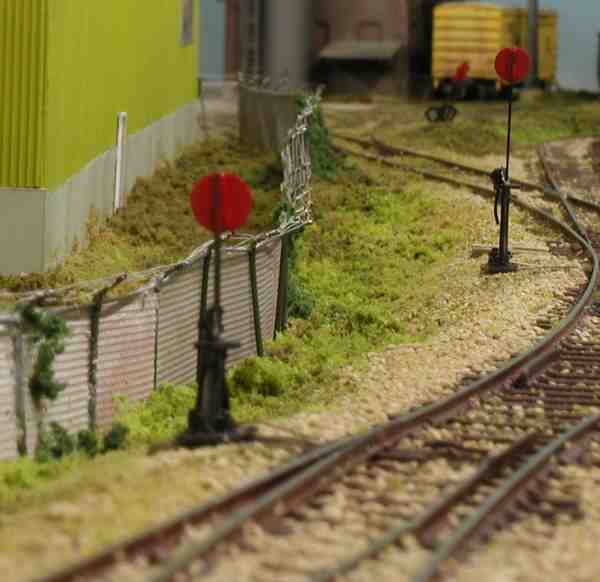

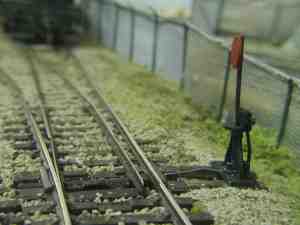

Last step: the target, pictures are linked to a larger view, click on it.
